cov ntsiab lus:

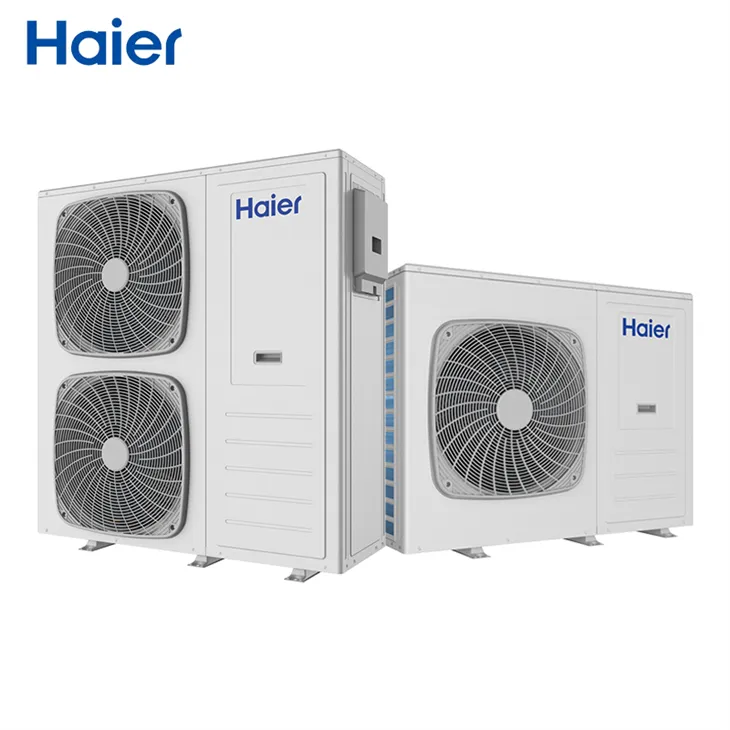

Lub tshuab cua txias cua sov yog cov khoom siv hluav taws xob zoo, ntsiag to thiab ib puag ncig zoo hauv tsev. Txais siv cov cuab yeej siv hluav taws xob zoo tshaj plaws, nws muaj qhov zoo ntawm kev txuag hluav taws xob, kev siv yooj yim thiab kev teeb tsa yooj yim, nqa koj cov cua sov kom huv thiab xis nyob. Qhov zoo ntawm peb cov khoom yog guaranteed thiab tsim nyog ntawm koj kev ntseeg.
|
Qauv |
HPM |
HPM |
HPM |
HPM |
HPM |
||
|
08-Nd2 |
10-Nd2 |
12-Nd2 |
14-Nd2 |
16-Nd2 |
|||
|
Kev npaj siv cov units |
Daim ntawv thov kub thiab nruab nrab |
||||||
|
Fais fab mov |
V / Ph / Hz |
220-240/1/50 |
|||||
|
Cua sov |
Muaj peev xwm |
kW |
8 |
10 |
12 |
14 |
16 |
|
Rated hwj chim input |
kW |
1.62 |
2.08 |
2.45 |
2.74 |
3.25 |
|
|
COP |
kW/kW |
4.95 |
4.8 |
4.9 |
5.11 |
4.92 |
|
|
Cua sov |
Muaj peev xwm |
kW |
8 |
10 |
12 |
14 |
16 |
|
Rated hwj chim input |
kW |
2.42 |
3.03 |
3.43 |
4.24 |
5 |
|
|
COP |
kW/kW |
3.3 |
3.3 |
3.5 |
3.3 |
3.2 |
|
|
Txias |
Muaj peev xwm |
kW |
8 |
10 |
11.4 |
14 |
16 |
|
Rated hwj chim input |
kW |
1.63 |
2.15 |
2.78 |
2.74 |
3.33 |
|
|
COP |
kW/kW |
4.9 |
4.65 |
4.1 |
5.11 |
4.8 |
|
|
Txias |
Muaj peev xwm |
kW |
8 |
10 |
11.4 |
14 |
16 |
|
Rated hwj chim input |
kW |
2.5 |
3.33 |
4.07 |
4.52 |
5.51 |
|
|
COP |
kW/kW |
3.2 |
3 |
2.8 |
3.1 |
2.9 |
|
|
SCOP |
Qhov nruab nrab huab cua |
35 degree |
4.9 |
4.9 |
4.9 |
5.2 |
4.9 |
|
Qhov nruab nrab huab cua |
55 degree |
3.85 |
3.85 |
3.85 |
3.9 |
3.9 |
|
|
Lub caij ntuj sov qhov chaw cua sov zog efficiency chav kawm |
Qhov nruab nrab huab cua |
35 degree |
A+++ |
A+++ |
A+++ |
A+++ |
A+++ |
|
Qhov nruab nrab huab cua |
55 degree |
A+++ |
A+++ |
A+++ |
A+++ |
A+++ |
|
|
SEER |
Kev siv kiv cua coil |
7 degree |
4.5 |
4.5 |
4.5 |
5.1 |
5.1 |
|
Kev siv cua txias hauv pem teb |
18 degree |
6.3 |
6.5 |
6.2 |
7.0 |
7.0 |
|
|
Cov tub yees |
Hom |
- |
R290 |
||||
|
Them nqi |
kg |
1.3 |
1.3 |
1.35 |
1.95 |
1.95 |
|
|
E-Heater thaub qab |
kW |
3.0 |
3.0 |
3.0 |
6.0 |
6.0 |
|
|
Suab Siab (1m) |
dB |
45 |
49 |
51 |
51 |
51 |
|
|
Lub tshuab nqus dej |
Rated dej ntws |
m3/h |
1.38 |
1.72 |
2.06 |
2.41 |
2.75 |
|
Tag nrho cov taub dej |
m |
12.5 |
12.3 |
12 |
11.5 |
11.1 |
|
|
Muaj lub taub hau dej |
m |
9 |
8.8 |
8.5 |
8 |
7.6 |
|
|
Maximum ua hauj lwm siab ntawm refrigerant |
Mpa |
0.85/3.2 |
|||||
|
Dej sab kev nyab xeeb valve |
Mpa |
0.6 |
0.6 |
0.6 |
0.6 |
0.6 |
|
|
Dej pov thawj qib |
/ |
IPX4 |
|||||
|
Kev sib txuas ntawm dej |
hauv |
1 |
1 |
1 |
1 |
1 |
|
|
Net dimension |
W*D*H |
mm |
1312x470x990 |
1312x470x1370 |
|||
|
Pob dimension |
W*D*H |
mm |
1362x567x1167 |
1362x567x1560 |
|||
|
Ambient kub ntau yam |
Txias |
degree |
10-48 |
||||
|
Cua sov |
degree |
-30-35 |
|||||
|
DHW |
degree |
-30-43 |
|||||
|
Tawm ntawm qhov ntsuas kub ntawm dej |
Txias |
degree |
5-25 |
||||
|
Cua sov |
degree |
24-75 |
|||||
|
DHW |
degree |
30-60 |
|||||
Cov ntsiab lus ntawm cov khoom thiab cov txiaj ntsig:
1.Qhov tsim ntsiag to tuaj yeem muab qhov chaw nyob ntsiag to, tso cai rau koj yooj yim txaus siab rau lub sijhawm nyob ib leeg lossis nrog koj tsev neeg.
2.Kev ua haujlwm siab thiab txuag hluav taws xob tsis tsuas yog ua rau koj tsis muaj kev txhawj xeeb, tab sis kuj txuag nyiaj. Cov cuab yeej siv siab tshaj plaws siv hauv cov tshuab cua txias cua txias tuaj yeem ua tiav kev ua haujlwm siab thiab txuag hluav taws xob, txo qis kev siv hluav taws xob zoo.
3. Yooj yim rau kev khiav lag luam thiab nruab, muab koj nrog kev yooj yim dua thiab yooj yim dua.
Vim li cas thiaj xaiv peb:
Peb txuas ntxiv kev tsim kho tshiab hauv kev tshawb fawb thiab kev tsim kho, los ntawm cov khoom lag luam roj kev lag luam mus rau kev tiv thaiv ib puag ncig thiab kev txuag hluav taws xob, tawm tswv yim txog kev txhim kho kom ruaj khov, thiab muab cov neeg siv khoom zoo, muaj kev ntseeg siab ntawm cov cua kub twj tso kua mis. Peb hais kom muab cov neeg siv khoom xav tau ua ntej thiab ib txwm ua raws li kev coj noj coj ua ntawm kev ncaj ncees, kev txaus siab thiab kev tsim kho tshiab hauv cov khoom tsim, kev tshawb fawb thiab kev tsim kho, kev tsim khoom, kev muag khoom thiab kev pabcuam.
Trading tuam txhab kev taw qhia:
Peb yog ib lub tuam txhab lag luam zoo heev. Qhov zoo ntawm cov twj tso kua mis Haier tshiab peb sawv cev yog lav. Lub tuam txhab nyob rau hauv Berlin, lub teb chaws Yelemees, nrog ib tug warehouse thiab ib tug kws yuav khoom pab neeg. Peb tau cog lus los muab cov neeg siv khoom nrog kev pabcuam zoo thiab cov khoom zoo tshaj plaws. Peb ua haujlwm nrog kev ncaj ncees, hais kom muab cov neeg siv khoom xav tau ua ntej, thiab muab kev pabcuam tshaj lij thiab ua haujlwm zoo rau txhua tus neeg siv khoom.
FAQ:
1. Puas yog lub tshuab cua kub lub twj tso kua mis muaj zog?
Yog lawm, cov khoom siv hluav taws xob cua kub tam sim no yog cov cuab yeej siv hluav taws xob HVAC zoo tshaj plaws nrog cov txiaj ntsig tseem ceeb.
2. Muaj pes tsawg xyoo tuaj yeem siv lub tshuab cua sov?
Tsis muaj teeb meem yog tias lub tshuab cua kub siv tau rau kaum xyoo, tab sis qhov tshwj xeeb lifespan muaj feem xyuam rau kev siv ib puag ncig thiab kev saib xyuas.
3. Yuav ua li cas rau nruab qhov cua kub twj tso kua mis?
Cov cua kub cua kub feem ntau yuav tsum tau muab tso rau hauv qhov chaw dav dav kom pab cov cuab yeej nqus cua, thiab lawv kuj yuav tsum tau nruab nrog cov kav dej thiab cov khoom siv hluav taws xob. Peb muaj cov kws tshaj lij installers los tsim kev cai rau koj.
