cov ntsiab lus:

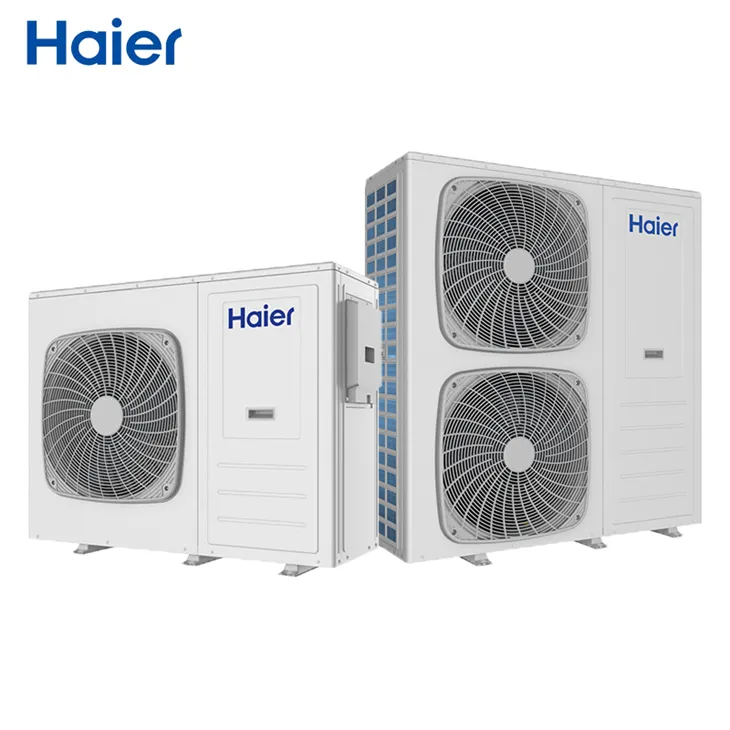

Lub tsev nyob EVI hloov pauv zaus lub twj tso kua mis yog ib qho khoom siv hluav taws xob txuag hluav taws xob. Los ntawm cov tshuab cua kub cua sov tshuab, cov cua kub txoj kev hloov kho los ntawm qhov kub thiab txias qhov zaus hloov dua siab tshiab los txhim kho cov cua sov kom zoo, yog li ua tiav kev ua haujlwm ntawm tib neeg thiab ntse cua sov. Haier EVI hloov pauv zaus lub twj tso kua mis tsis tsuas yog muaj kev ua tau zoo hauv cov cua sov, tab sis kuj nyob rau hauv qhov txias, thiab tuaj yeem ua tau raws li cov kev xav tau sib txawv hauv ntau lub caij.
|
Qauv |
HPM |
HPM |
HPM |
HPM |
HPM |
||
|
08-Nd2 |
10-Nd2 |
12-Nd2 |
14-Nd2 |
16-Nd2 |
|||
|
Kev npaj siv cov units |
Daim ntawv thov kub thiab nruab nrab |
||||||
|
Fais fab mov |
V / Ph / Hz |
220-240/1/50 |
|||||
|
Cua sov |
Muaj peev xwm |
kW |
8 |
10 |
12 |
14 |
16 |
|
Rated hwj chim input |
kW |
1.62 |
2.08 |
2.45 |
2.74 |
3.25 |
|
|
COP |
kW/kW |
4.95 |
4.8 |
4.9 |
5.11 |
4.92 |
|
|
Cua sov |
Muaj peev xwm |
kW |
8 |
10 |
12 |
14 |
16 |
|
Rated hwj chim input |
kW |
2.42 |
3.03 |
3.43 |
4.24 |
5 |
|
|
COP |
kW/kW |
3.3 |
3.3 |
3.5 |
3.3 |
3.2 |
|
|
Txias |
Muaj peev xwm |
kW |
8 |
10 |
11.4 |
14 |
16 |
|
Rated hwj chim input |
kW |
1.63 |
2.15 |
2.78 |
2.74 |
3.33 |
|
|
COP |
kW/kW |
4.9 |
4.65 |
4.1 |
5.11 |
4.8 |
|
|
Txias |
Muaj peev xwm |
kW |
8 |
10 |
11.4 |
14 |
16 |
|
Rated hwj chim input |
kW |
2.5 |
3.33 |
4.07 |
4.52 |
5.51 |
|
|
COP |
kW/kW |
3.2 |
3 |
2.8 |
3.1 |
2.9 |
|
|
SCOP |
Qhov nruab nrab huab cua |
35 degree |
4.9 |
4.9 |
4.9 |
5.2 |
4.9 |
|
Qhov nruab nrab huab cua |
55 degree |
3.85 |
3.85 |
3.85 |
3.9 |
3.9 |
|
|
Lub caij ntuj sov qhov chaw cua sov zog efficiency chav kawm |
Qhov nruab nrab huab cua |
35 degree |
A+++ |
A+++ |
A+++ |
A+++ |
A+++ |
|
Qhov nruab nrab huab cua |
55 degree |
A+++ |
A+++ |
A+++ |
A+++ |
A+++ |
|
|
SEER |
Kev siv kiv cua coil |
7 degree |
4.5 |
4.5 |
4.5 |
5.1 |
5.1 |
|
Kev siv cua txias hauv pem teb |
18 degree |
6.3 |
6.5 |
6.2 |
7.0 |
7.0 |
|
|
Cov tub yees |
Hom |
- |
R290 |
||||
|
Them nqi |
kg |
1.3 |
1.3 |
1.35 |
1.95 |
1.95 |
|
|
E-Heater thaub qab |
kW |
3.0 |
3.0 |
3.0 |
6.0 |
6.0 |
|
|
Suab Siab (1m) |
dB |
45 |
49 |
51 |
51 |
51 |
|
|
Lub tshuab nqus dej |
Rated dej ntws |
m3/h |
1.38 |
1.72 |
2.06 |
2.41 |
2.75 |
|
Tag nrho cov taub dej |
m |
12.5 |
12.3 |
12 |
11.5 |
11.1 |
|
|
Muaj lub taub hau dej |
m |
9 |
8.8 |
8.5 |
8 |
7.6 |
|
|
Maximum ua hauj lwm siab ntawm refrigerant |
Mpa |
0.85/3.2 |
|||||
|
Dej sab kev nyab xeeb valve |
Mpa |
0.6 |
0.6 |
0.6 |
0.6 |
0.6 |
|
|
Dej pov thawj qib |
/ |
IPX4 |
|||||
|
Kev sib txuas ntawm dej |
hauv |
1 |
1 |
1 |
1 |
1 |
|
|
Net dimension |
W*D*H |
mm |
1312x470x990 |
1312x470x1370 |
|||
|
Pob dimension |
W*D*H |
mm |
1362x567x1167 |
1362x567x1560 |
|||
|
Ambient kub ntau yam |
Txias |
degree |
10-48 |
||||
|
Cua sov |
degree |
-30-35 |
|||||
|
DHW |
degree |
-30-43 |
|||||
|
Tawm ntawm qhov ntsuas kub ntawm dej |
Txias |
degree |
5-25 |
||||
|
Cua sov |
degree |
24-75 |
|||||
|
DHW |
degree |
30-60 |
|||||
Nta:
Kev ua haujlwm siab thiab txuag hluav taws xob: Siv cov cuab yeej hloov pauv zaus, nws tuaj yeem hloov kho lub zog siv raws li qhov xav tau kom ua tiav cov cua sov zoo tshaj plaws thiab txuag cov nqi siv ntau.
Kev nyab xeeb thiab txhim khu kev qha: Lub sensor system saib xyuas qhov kub, siab, dej ntws thiab lwm yam khoom siv. Thaum muaj qhov txawv txav tshwm sim, lub kaw lus yuav cia li kaw kom ntseeg tau tias muaj kev nyab xeeb thiab siv tau.
Kev khiav hauj lwm huab cua: Thaum khiav 24 teev hauv ib hnub, nws tuaj yeem tswj tau qhov cua sov kom ruaj khov thiab ua kom tag nrho chav sov.
Muaj nuj nqi:
Zaub: moos zaub, kub zaub
Muaj nuj nqi: cua sov, txias, dej kub, sij hawm, ncov thiab hav fais fab, ntse daim phiaj, photovoltaic zog
Hom: hluav taws xob cua sov, me nyuam xauv, ntsiag to, defrost, sterilization
Cov khoom ntim:
Nyob hauv EVI inverter cua sov twj tso kua mis tau ntim rau hauv kev tshaj lij thiab tus qauv, nrog cov tsos zoo nkauj, muaj zog ua haujlwm ntev. Txhua yam khoom tau nruab nrog cov lus qhia ntxaws txog kev ua haujlwm thiab cov ntawv pov thawj tsim nyog los xyuas kom meej cov khoom zoo thiab siv cov teebmeem. Nyob rau tib lub sijhawm, peb kuj muab kev pabcuam tomqab muag kom cov neeg siv khoom tsis muaj kev txhawj xeeb.
Product Quality Control:
EVI cov khoom siv hluav taws xob sib txawv ntawm cov twj siv hluav taws xob siv cov cuab yeej ntse los saib xyuas cov txheej txheem kev khiav hauj lwm ntawm cov cuab yeej los xyuas kom meej tias nws muaj kev nyab xeeb, ruaj khov thiab txhim khu kev qha. Nyob rau tib lub sijhawm, ntau yam txhais tau tias xws li kev saib xyuas zoo, kev coj ua piv txwv, thiab kev kuaj thib peb yog siv rau hauv kev tsim khoom thiab kev tsim khoom los ua kev tswj xyuas nruj ntawm txhua yam khoom kom ntseeg tau cov khoom zoo.
