cov ntsiab lus:

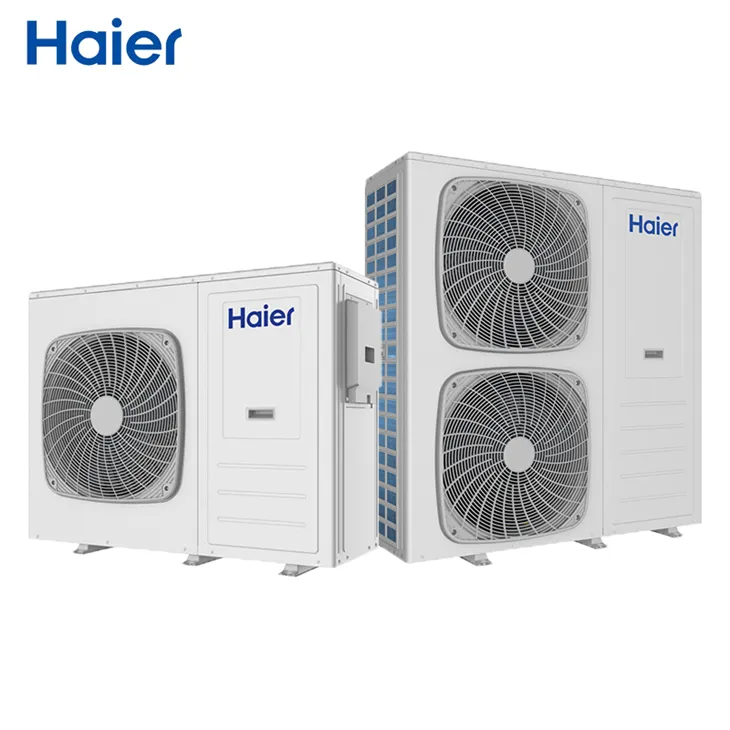

Lub tshuab cua sov cua sov tshiab yog ib qho kev tiv thaiv ib puag ncig thiab txuag hluav taws xob. Nws siv cov peev txheej ntuj xws li huab cua thiab dej los hloov lub zog cua sov kom sov hauv chav. Kev siv cov tshuab cua kub cua sov kom tsis txhob muaj kev nyab xeeb thiab ib puag ncig muaj kuab paug los ntawm cov txheej txheem cua sov xws li roj thiab roj, thiab txo cov khoom siv hluav taws xob.
|
Qauv |
HPM |
HPM |
HPM |
HPM |
HPM |
||
|
08-Nd2 |
10-Nd2 |
12-Nd2 |
14-Nd2 |
16-Nd2 |
|||
|
Kev npaj siv cov units |
Daim ntawv thov kub thiab nruab nrab |
||||||
|
Fais fab mov |
V / Ph / Hz |
220-240/1/50 |
|||||
|
Cua sov |
Muaj peev xwm |
kW |
8 |
10 |
12 |
14 |
16 |
|
Rated hwj chim input |
kW |
1.62 |
2.08 |
2.45 |
2.74 |
3.25 |
|
|
COP |
kW/kW |
4.95 |
4.8 |
4.9 |
5.11 |
4.92 |
|
|
Cua sov |
Muaj peev xwm |
kW |
8 |
10 |
12 |
14 |
16 |
|
Rated hwj chim input |
kW |
2.42 |
3.03 |
3.43 |
4.24 |
5 |
|
|
COP |
kW/kW |
3.3 |
3.3 |
3.5 |
3.3 |
3.2 |
|
|
Txias |
Muaj peev xwm |
kW |
8 |
10 |
11.4 |
14 |
16 |
|
Rated hwj chim input |
kW |
1.63 |
2.15 |
2.78 |
2.74 |
3.33 |
|
|
COP |
kW/kW |
4.9 |
4.65 |
4.1 |
5.11 |
4.8 |
|
|
Txias |
Muaj peev xwm |
kW |
8 |
10 |
11.4 |
14 |
16 |
|
Rated hwj chim input |
kW |
2.5 |
3.33 |
4.07 |
4.52 |
5.51 |
|
|
COP |
kW/kW |
3.2 |
3 |
2.8 |
3.1 |
2.9 |
|
|
SCOP |
Qhov nruab nrab huab cua |
35 degree |
4.9 |
4.9 |
4.9 |
5.2 |
4.9 |
|
Qhov nruab nrab huab cua |
55 degree |
3.85 |
3.85 |
3.85 |
3.9 |
3.9 |
|
|
Lub caij ntuj sov qhov chaw cua sov zog efficiency chav kawm |
Qhov nruab nrab huab cua |
35 degree |
A+++ |
A+++ |
A+++ |
A+++ |
A+++ |
|
Qhov nruab nrab huab cua |
55 degree |
A+++ |
A+++ |
A+++ |
A+++ |
A+++ |
|
|
SEER |
Kev siv kiv cua coil |
7 degree |
4.5 |
4.5 |
4.5 |
5.1 |
5.1 |
|
Kev siv cua txias hauv pem teb |
18 degree |
6.3 |
6.5 |
6.2 |
7.0 |
7.0 |
|
|
Cov tub yees |
Hom |
- |
R290 |
||||
|
Them nqi |
kg |
1.3 |
1.3 |
1.35 |
1.95 |
1.95 |
|
|
E-Heater thaub qab |
kW |
3.0 |
3.0 |
3.0 |
6.0 |
6.0 |
|
|
Suab Siab (1m) |
dB |
45 |
49 |
51 |
51 |
51 |
|
|
Lub tshuab nqus dej |
Rated dej ntws |
m3/h |
1.38 |
1.72 |
2.06 |
2.41 |
2.75 |
|
Tag nrho cov taub dej |
m |
12.5 |
12.3 |
12 |
11.5 |
11.1 |
|
|
Muaj lub taub hau dej |
m |
9 |
8.8 |
8.5 |
8 |
7.6 |
|
|
Maximum ua hauj lwm siab ntawm refrigerant |
Mpa |
0.85/3.2 |
|||||
|
Dej sab kev nyab xeeb valve |
Mpa |
0.6 |
0.6 |
0.6 |
0.6 |
0.6 |
|
|
Dej pov thawj qib |
/ |
IPX4 |
|||||
|
Kev sib txuas ntawm dej |
hauv |
1 |
1 |
1 |
1 |
1 |
|
|
Net dimension |
W*D*H |
mm |
1312x470x990 |
1312x470x1370 |
|||
|
Pob dimension |
W*D*H |
mm |
1362x567x1167 |
1362x567x1560 |
|||
|
Ambient kub ntau yam |
Txias |
degree |
10-48 |
||||
|
Cua sov |
degree |
-30-35 |
|||||
|
DHW |
degree |
-30-43 |
|||||
|
Tawm ntawm qhov ntsuas kub ntawm dej |
Txias |
degree |
5-25 |
||||
|
Cua sov |
degree |
24-75 |
|||||
|
DHW |
degree |
30-60 |
|||||
khoom zoo:
Kev txuag hluav taws xob thiab txuag hluav taws xob: Lub tshuab hluav taws xob cua sov siv hluav taws xob siv hluav taws xob rau cov cua sov, uas tuaj yeem txuag hluav taws xob zoo, ua kom sov hauv tsev ruaj khov, thiab txhim kho cua sov kom zoo.
Kev nyab xeeb thiab kev tiv thaiv ib puag ncig: Piv nrog rau cov txheej txheem cua sov, cov cua kub twj tso kua mis tsis muaj cov nplaim taws qhib thiab tsis tsim cov khoom phom sij xws li carbon dioxide thiab carbon monoxide, uas ua rau txo qis kev nyab xeeb thiab ib puag ncig muaj kuab paug.
Kev tswj ntse: Lub tshuab cua sov cua sov tuaj yeem hloov kho cua sov hom raws li kev hloov pauv ntawm qhov kub thiab txias sab hauv tsev. Nws muaj kev tswj xyuas kev txawj ntse uas tuaj yeem txheeb xyuas thiab kho cov cua sov kom zoo dua qub.
Kev khiav hauj lwm hauv paus ntsiab lus:
Cua sov: Thaum qhov kub hauv tsev qis dua qhov ntsuas kub - qhov sib txawv ntawm qhov kub thiab txias, tus tswv tsev cia li kho qhov load thiab qhov hluav taws xob dej kub raws li qhov ntsuas kub kom sov hauv chav. Thaum qhov kub hauv tsev nce mus txog qhov ntsuas kub, tus tswv tsev ua haujlwm ntawm qhov tsawg zaus kom qhov kub thiab txias hauv tsev tsis tu ncua.
Lub tub yees: Thaum qhov kub ntawm sab hauv tsev siab tshaj qhov ntsuas kub + lub teeb kub sib txawv (kho tau), tus tswv tsev cia li kho qhov load thiab qhov hluav taws xob dej kub raws li qhov ntsuas kub kom txias hauv chav. Thaum qhov kub hauv tsev nce mus txog qhov ntsuas kub, tus tswv tsev ua haujlwm ntawm qhov tsawg zaus kom qhov kub thiab txias hauv tsev tsis tu ncua.
Cov dej kub: Thaum cov dej kub hauv lub tank dej qis dua qhov ntsuas kub - qhov ntsuas kub sib txawv, tus tswv tsev yuav ua haujlwm thiab cov dej kub yuav tsum tsis txhob cua sov thaum nws ncav cuag qhov kub thiab txias.
kev tswj kom zoo:
Lub tshuab cua sov lub tshuab hluav taws xob tshiab tau dhau los ntawm cov chaw tsim khoom cov txheej txheem kev soj ntsuam tag nrho, thiab kev soj ntsuam nruj nruj tau ua tiav hauv txhua qhov txuas xws li kev tsim khoom, sib dhos, thiab kev debugging kom ntseeg tau tias muaj kev ruaj ntseg thiab ruaj khov ntawm cov khoom. Txhua lub tshuab cua sov cua sov yuav tsum tau ua tiav kev sim thiab sim ua haujlwm ua ntej tawm hauv lub Hoobkas kom ntseeg tau tias cov khoom zoo raws li cov qauv hauv lub tebchaws thiab cov kev cai.
FAQ:
1. Peb yog leej twg?
Peb yog ib lub tuam txhab ua lag luam nyob hauv lub teb chaws Yelemees thiab tau koom nrog kev lag luam ntau xyoo. Peb kuj yog tus neeg sawv cev rau Haier cov twj tso kua mis. Txhawm rau muab cov neeg siv khoom txhim khu kev qha, muaj txiaj ntsig thiab txuag hluav taws xob. Peb ntseeg siab tias dhau ntawm peb txoj kev siv zog, peb tuaj yeem tsim lub neej zoo rau peb cov neeg siv khoom.
2. Cov teeb meem dab tsi yuav tsum tau them rau hauv kev saib xyuas cov cua sov thiab cov twj tso kua mis?
Kev saib xyuas cov cua sov thiab cov twj tso kua mis kub muaj xws li ntxuav, tshuaj xyuas thiab hloov cov khoom. Thaum ua haujlwm tu, cov neeg siv yuav tsum xub nkag siab txog yuav ua li cas ntxuav, tshuaj xyuas thiab hloov qhov chaw, thiab xyuam xim rau kev nyab xeeb. Yog tias koj tsis paub meej tias yuav ua li cas, koj yuav tsum nrhiav kev pab.
3. Yuav ua li cas ntxuav lub cua sov lub twj tso kua mis?
Teb: Cov cua kub cua kub twj tso kua mis yuav tsum tau ntxuav tsis tu ncua thaum siv kom tsis txhob cuam tshuam nws cov hauj lwm zoo. Cov cua lim thiab lim dej tuaj yeem raug tshem tawm los ntxuav. Feem ntau, cov kav dej yuav tsum tau ntxuav txhua 2.3 xyoos.
