Khoom taw qhia:

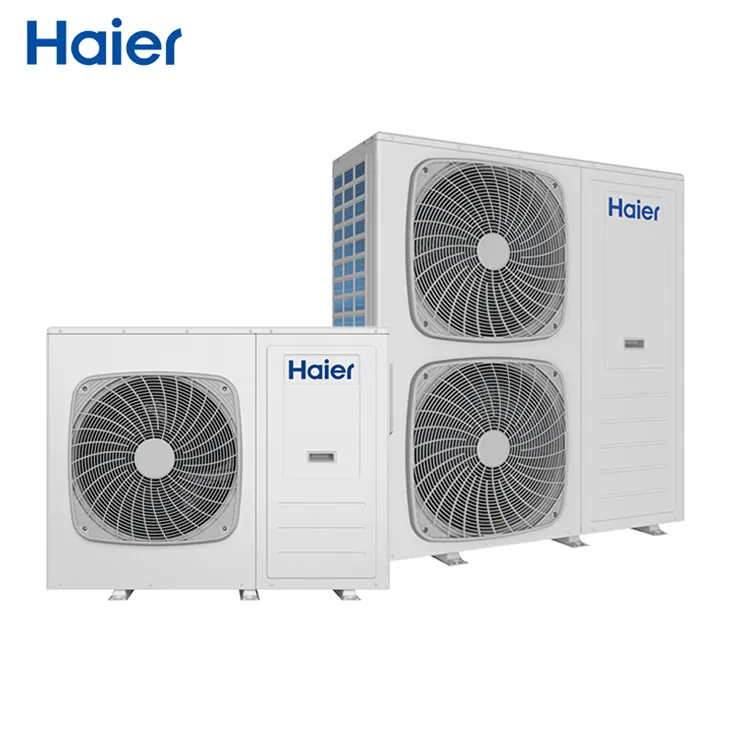

Thaum tshav kub kub twj tso kua mis cua sov thiab dej kub yog ib tug high-efficiency thiab lub zog-txuag khoom cua sov uas absorbs thiab sublimates low-temperature tshav kub zog nyob rau hauv cov huab cua thiab outputs high-temperature tshav kub zog rau cua sov thiab dej kub. Nws muaj cov yam ntxwv ntawm kev tiv thaiv ib puag ncig, kev siv tsawg thiab kev nyab xeeb.
|
Qauv |
HPM |
HPM |
HPM |
HPM |
HPM |
||
|
08-Nd2 |
10-Nd2 |
12-Nd2 |
14-Nd2 |
16-Nd2 |
|||
|
Kev npaj siv cov units |
Daim ntawv thov kub thiab nruab nrab |
||||||
|
Fais fab mov |
V / Ph / Hz |
220-240/1/50 |
|||||
|
Cua sov |
Muaj peev xwm |
kW |
8 |
10 |
12 |
14 |
16 |
|
Rated hwj chim input |
kW |
1.62 |
2.08 |
2.45 |
2.74 |
3.25 |
|
|
COP |
kW/kW |
4.95 |
4.8 |
4.9 |
5.11 |
4.92 |
|
|
Cua sov |
Muaj peev xwm |
kW |
8 |
10 |
12 |
14 |
16 |
|
Rated hwj chim input |
kW |
2.42 |
3.03 |
3.43 |
4.24 |
5 |
|
|
COP |
kW/kW |
3.3 |
3.3 |
3.5 |
3.3 |
3.2 |
|
|
Txias |
Muaj peev xwm |
kW |
8 |
10 |
11.4 |
14 |
16 |
|
Rated hwj chim input |
kW |
1.63 |
2.15 |
2.78 |
2.74 |
3.33 |
|
|
COP |
kW/kW |
4.9 |
4.65 |
4.1 |
5.11 |
4.8 |
|
|
Txias |
Muaj peev xwm |
kW |
8 |
10 |
11.4 |
14 |
16 |
|
Rated hwj chim input |
kW |
2.5 |
3.33 |
4.07 |
4.52 |
5.51 |
|
|
COP |
kW/kW |
3.2 |
3 |
2.8 |
3.1 |
2.9 |
|
|
SCOP |
Qhov nruab nrab huab cua |
35 degree |
4.9 |
4.9 |
4.9 |
5.2 |
4.9 |
|
Qhov nruab nrab huab cua |
55 degree |
3.85 |
3.85 |
3.85 |
3.9 |
3.9 |
|
|
Lub caij ntuj sov qhov chaw cua sov zog efficiency chav kawm |
Qhov nruab nrab huab cua |
35 degree |
A+++ |
A+++ |
A+++ |
A+++ |
A+++ |
|
Qhov nruab nrab huab cua |
55 degree |
A+++ |
A+++ |
A+++ |
A+++ |
A+++ |
|
|
SEER |
Kev siv kiv cua coil |
7 degree |
4.5 |
4.5 |
4.5 |
5.1 |
5.1 |
|
Kev siv cua txias hauv pem teb |
18 degree |
6.3 |
6.5 |
6.2 |
7.0 |
7.0 |
|
|
Cov tub yees |
Hom |
- |
R290 |
||||
|
Them nqi |
kg |
1.3 |
1.3 |
1.35 |
1.95 |
1.95 |
|
|
E-Heater thaub qab |
kW |
3.0 |
3.0 |
3.0 |
6.0 |
6.0 |
|
|
Suab Siab (1m) |
dB |
45 |
49 |
51 |
51 |
51 |
|
|
Lub tshuab nqus dej |
Rated dej ntws |
m3/h |
1.38 |
1.72 |
2.06 |
2.41 |
2.75 |
|
Tag nrho cov taub dej |
m |
12.5 |
12.3 |
12 |
11.5 |
11.1 |
|
|
Muaj lub taub hau dej |
m |
9 |
8.8 |
8.5 |
8 |
7.6 |
|
|
Maximum ua hauj lwm siab ntawm refrigerant |
Mpa |
0.85/3.2 |
|||||
|
Dej sab kev nyab xeeb valve |
Mpa |
0.6 |
0.6 |
0.6 |
0.6 |
0.6 |
|
|
Dej pov thawj qib |
/ |
IPX4 |
|||||
|
Kev sib txuas ntawm dej |
hauv |
1 |
1 |
1 |
1 |
1 |
|
|
Net dimension |
W*D*H |
mm |
1312x470x990 |
1312x470x1370 |
|||
|
Pob dimension |
W*D*H |
mm |
1362x567x1167 |
1362x567x1560 |
|||
|
Ambient kub ntau yam |
Txias |
degree |
10-48 |
||||
|
Cua sov |
degree |
-30-35 |
|||||
|
DHW |
degree |
-30-43 |
|||||
|
Tawm ntawm qhov ntsuas kub ntawm dej |
Txias |
degree |
5-25 |
||||
|
Cua sov |
degree |
24-75 |
|||||
|
DHW |
degree |
30-60 |
|||||
Product details:
1. Kev ua haujlwm siab thiab kev txuag hluav taws xob: Cov twj tso kua mis cua sov thiab cov dej kub siv cov tshuab hluav taws xob siv hluav taws xob, uas tuaj yeem txo qis kev siv hluav taws xob ntau dua 70%, txo cov hluav taws xob pov tseg thiab cov pa phem heev.
2. Ntau yam kev ruaj ntseg lav: Cov khoom no txais kev tiv thaiv kev ruaj ntseg ntau qib thiab muaj kev ua haujlwm xws li kev tiv thaiv kev thaiv, kev tiv thaiv overload, tiv thaiv overcurrent, thiab kev tiv thaiv kub.
3. Cov cua sov txhua lub sijhawm: Cov khoom no tuaj yeem ua tiav txhua qhov cua sov, muab qhov chaw xis nyob thiab cov dej kub sov txawm tias lub caij ntuj no txias lossis lub caij ntuj sov.
Yam khoom:
Qhov sib txawv zaus compressor yog ib qho tseem ceeb tshaj plaws hauv cov twj tso kua mis cua sov. Nws yog lub luag haujlwm rau compressing low-temperature thiab low-pressure refrigerant gas to high-temperature and high-pressure gas to provide heating and hot water energy for the system. Nws tuaj yeem hloov kho qhov ua haujlwm zaus raws li qhov system xav tau kom ua tiav cov cua sov zoo thiab ruaj khov thiab cov dej kub, thaum txo suab nrov thiab lub zog siv.
Qhov sib txawv zaus tsav module yog qhov ntse tswj chaw ntawm qhov sib txawv zaus compressor. Nws siv cov sensors raug txheeb xyuas qhov chaw ib puag ncig thiab kev ua haujlwm hauv lub cev, thiab saib xyuas thiab kho lub zog ua haujlwm ntawm lub sijhawm tiag tiag kom ntseeg tau tias kev ua haujlwm zoo, ruaj khov thiab nyab xeeb.
System installation daim duab:
Cov khoom siv hauv lub cev: lub tshuab ua haujlwm, tsis muaj dej tank, lub tank dej hauv tsev, cua sov davhlau ya nyob twg, dej ntim dej, hluav taws xob peb-txoj kev valve, dej twj tso kua mis, lim, raj valve, rwb thaiv tsev, thiab lwm yam.
FAQ
1. Lub tshuab cua sov ua haujlwm li cas?
Lub twj tso kua mis kub yog ib qho cuab yeej siv qhov sib txawv ntawm qhov kub thiab txias rau kev hloov hluav taws xob. Nws tshem tawm qhov kub thiab txias zog hauv tsev lossis sab nraum zoov, thiab ua kom nws lub zog los ntawm evaporation, compression, condensation, expansion thiab lwm yam txheej txheem ntawm lub twj tso kua mis kub, yog li muab dej kub thiab cua sov zog.
2. Qhov zoo ntawm cov twj tso cua sov yog dab tsi?
Qhov zoo tshaj plaws ntawm cov twj tso cua sov yog lub zog txuag, kev tiv thaiv ib puag ncig, kev lag luam thiab siv tau. Nws tsis tuaj yeem txo qis kev siv hluav taws xob nkaus xwb, tab sis kuj txo qis emissions ntawm cov teeb meem tshuaj xws li carbon dioxide, pab txo cov teeb meem ib puag ncig. Nyob rau tib lub sijhawm, nws kuj tuaj yeem hloov kho ntse raws li kev siv sib txawv, txo cov kev cuam tshuam ntawm phau ntawv thiab cov nqi siv.
3. Lub neej ua haujlwm ntev npaum li cas ntawm lub tshuab cua sov?
Nyob rau hauv ib txwm siv, kev pab cuam lub neej ntawm Haier hom twj tso kua mis tuaj yeem ncav cuag 10 xyoo. Yog tias khaws cia tsis tu ncua, lub neej kev pabcuam tuaj yeem txuas ntxiv.
4. Peb yuav tsum xyuam xim rau dab tsi thaum siv lub tshuab cua sov?
Thaum siv cov twj tso kua mis cua sov thiab dej kub, yuav tsum tau saib xyuas kom cov huab cua nyob ib puag ncig kom tsis txhob muaj kev cuam tshuam ntawm cov twj tso kua mis kub. Thaum lub sij hawm tu, nws yog ib qho tsim nyog yuav tsum tau ua raws li phau ntawv qhia kom tsis txhob muaj kev ua haujlwm tsis zoo thiab kev puas tsuaj rau cov khoom siv.
5. Puas yog lub twj tso cua sov tsim nyog rau kev siv hauv tsev?
Zoo heev rau tsev siv cov khoom siv cua sov. Piv nrog rau cov txheej txheem cua sov, nws yog ntau zog-txuag thiab ib puag ncig tus phooj ywg. Nws tuaj yeem tsis tsuas yog txo cov nqi siv thiab txo cov hluav taws xob pov tseg, tab sis kuj muab qhov chaw nyob sab hauv tsev zoo dua. Nws tuaj yeem hais tias yog khoom siv hluav taws xob hauv tsev zoo heev.
